Product features:

Accuracy

High performance non-contact measurement with nm resolution.

Quality

Tests compliant to latest ISO230 standards.

Advanced analysis

Dynamic spindle performance (radial and axial errors), thermal drift, and real time (environmental) disturbances

Flexibility

Quick and easy set up, and suitable for a wide range of ultra precision and high speed spindles and rotary.

Spindle Check is designed to determine critical performance parameters including: radial and axial error motions, thermal drift and distortion due to environmental vibrations. Tracking and control of such performance can be critical to ensure product specifications can be met and yield maintained in high end manufacturing applications, such as medical and aerospace parts.

The Spindle Check system employs state-of-the-art sensor technology for high accuracy measurement. Powerful yet simple software provides clear performance data. Data is provided as actual spindle displacement and can be directly linked to tolerances observed in parts. Simple installation and lightweight portable design ensure it is quick and easy to use across the shop floor.

Measurement is carried out using a high precision target stored in the tool magazine, with a maximum roundness error of 1 μm. Spindle accuracy is measured according to machine type, in line with international standards (ANSI, ISO and JIS). Multiple Spindle Checks can be networked remotely for total factory control.



Applications


  • Tracking and control of spindle performance data
  • Identifying critical performance parameters including: radial and axial error motions, thermal drift and distortion due to environment
  • Linking spindle displacement directly to tolerances observed in parts
  • Quick and easy comparison of spindles on multiple machines

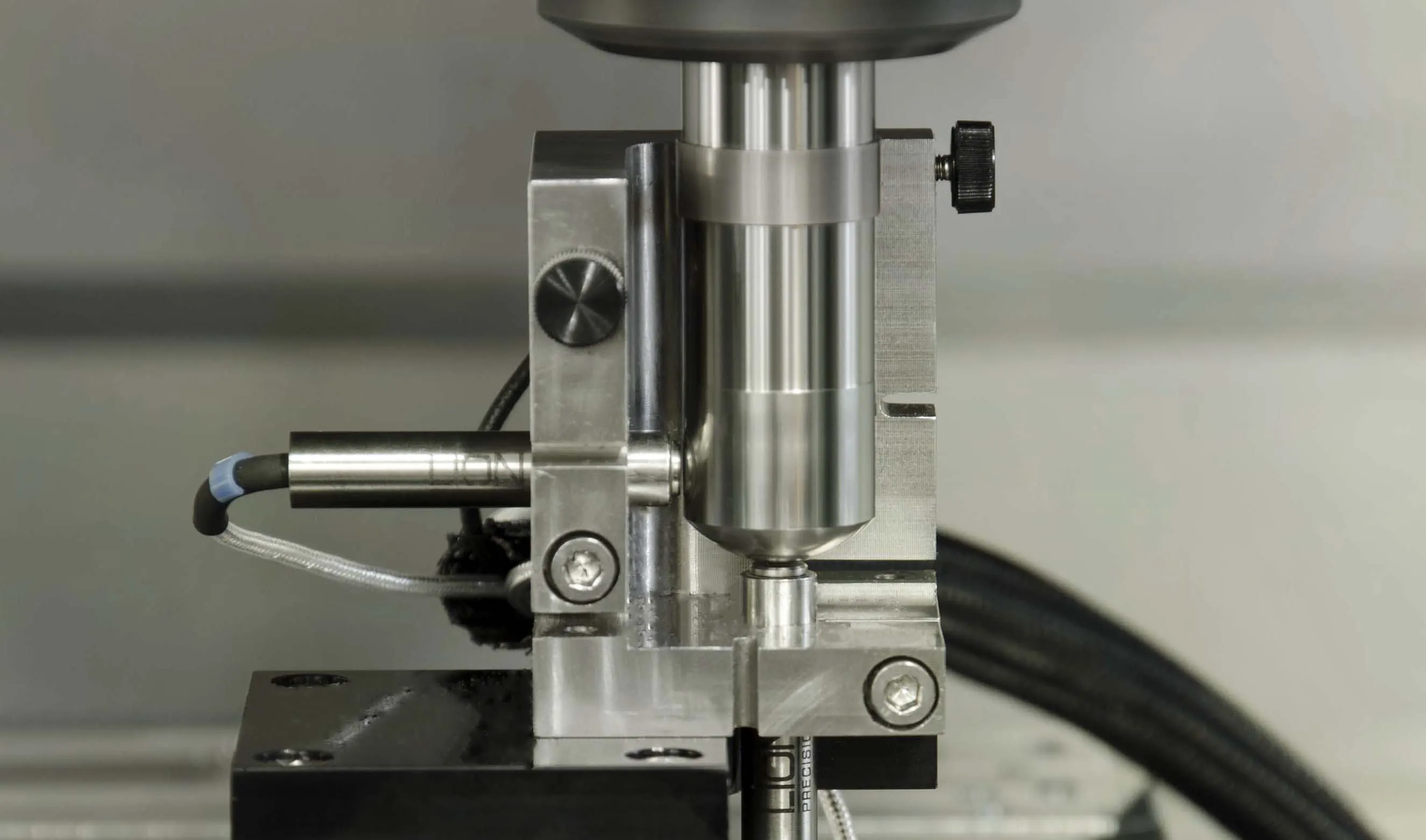

Spindle Check Analyzer set-up
The Spindle Check Analyzer (SCA) measures and analyzes spindle error motions (dynamic and thermal) in accordance with ANSI/ASME, ISO, and JIS standards.
